Specifications : CPB-4030:
OutputFrequencyOutput Power
CDMA-800850-894Mhz50 Watts
GSM-900935-960MHz50 Watts
DCS-18001805-1850MHz50 Watts
PHS-1900 / GSM 19001930-1990MHz50 Watts
3G*2110-2170 MHz50 Watts
WIFI- 802.11b / 802.11g2401-2496 MHz.25 Watts (Option)
450MHz450-470MHz50 /100 Watts (Option)
Satellite Phones1500-1600 or 1600-1700MHz15 Watts (Option)
Total RF OutputOver 200 /260 Watts
Power SupplyAC220V/ 110V DC27-28V
Power consumption100 Watts
Jamming Range200-600M based on back ground signal strength<=-75dBm
Operation24 hrs / 7 days a week
Dimension72 x 45 x 32 cm
Weight42 Kg.
RF Range(Adjustable) 50- 400 meters
Product Installation
StandardUL (E190582) CSA (LR 112971 Level 3)
1) Each unit have a control I/O Board (RF module) with hard relays (for alarm trigger) via wireless output for 2-8 data
transmission to control of all functions of each unit.- to be controlled via software program on remote PC
workstation by wireless
2) Each Unit be able to send Alert to the remote control PC workstation by wireless, if any of the RF frequency bands
fails individually from each of the units.
3) All units have individual digital ID to identify them through the PC workstation.
4) The wireless data will travel to converter in main office and then convert to RS232 so it can then
communicates with a PC workstation computer

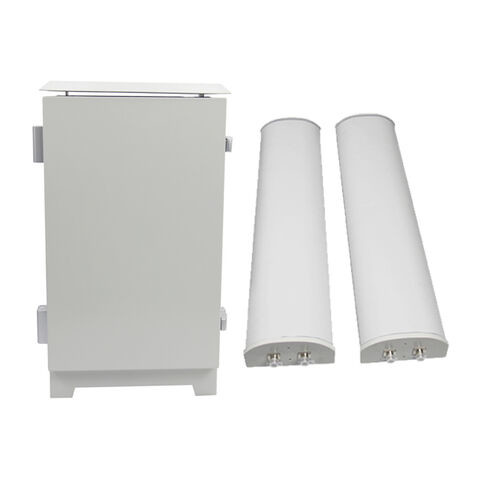

Jammer Unit housing unit is waterproof and heat sink
Option:
UPS system
UPS + battery (Two 12V batteries, normal trunk battery and it can buy locally)
When you use UPS system + Two 12V batteries, you can charge the battery and turn on the jammer at the same time. When the power is down, the UPS system can let the jammer system on 2-3 hours depends on the capacity of the battery (see all photos)
Shipping Information
| FOB Port | Shenzhen |
| Weight per Unit | 42.0 Kilograms |
| HTS Code | 8543.70.00 0 |
| Export Carton Dimensions L/W/H | 75.0 x 48.0 x 35.0 Centimeters |
| Lead Time | 7–12 days |
| Dimensions per Unit | 72.0 x 45.0 x 32.0 Centimeters |
| Units per Export Carton | 1.0 |
| Export Carton Weight | 43.0 Kilograms |
