Name: NXPA2000 6000MHz 100W UHF RF Amplifier Amplifier Module Low Power
Brand: NENGXUN
Price: 1 USD

Brand Name : NENGXUN

Model Number : NXPA2000-6000MHz-100W

Place of Origin : CHINA

MOQ : 1

Price : The price is negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000

Delivery Time : 5-8DAYS

Packaging Details : 25.6*111.7*17MM

Frequency : NXPA2000-6000MHz-100W

Dimensions(mm)/Weight : 206×132×27.3mm (without connectors), ≤2.06KG

Max output Power (CW) : ≥ 49DBm

Temperature protection : Over 80℃ protection，with open circuit protection

Contact Now

PN:NXPA2000-6000MHz-100W

Small size, Low power consumption, good stability;
High linearity and Intermodulation;
Shape structure can be customized
Products can be developed according specification;
Widely used in Radar, Navigation, Communication, EMC test and other Civil fields.

NXPA2000 6000MHz 100W UHF RF Amplifier Amplifier Module Low Power

Parameters
Frequency	2000MHz~6000MHz
Max output Power (CW)	≥ 50dBm
Gain	≥ 49dB (customized)
Gain Flatness	≤ ±3dB
Input power	2±2dBm
Input VSWR	≤ 1.7
Temperature protection	Over 80℃ protection
PTT port	Default off; 3.3~5V on
VCC/Current reference	30V/12A
Working voltage	+28V~ +30V
Working current	≤ 9-10A
Spurious	≤ -65dBc
Harmonic	harmonics Worst point≤ -10dBc
Operating Temperature	-30℃~+55℃
RF Connector	SMA-F
Power Supply Interface	feedthru capacitor
Dimensions(mm)/Weight	≤222×99.5×27.5mm (without connectors), ≤1Kg
Installation method	Radiator shall be installed for power amplifier test
Package	1pcs/box

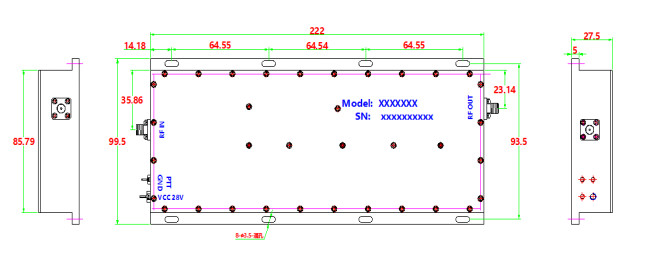

Outline Drawing

NXPA2000 6000MHz 100W UHF RF Amplifier Amplifier Module Low Power

Support and Services:

RF Power Amplifier Technical Support and Services

Provide technical guidance on the installation, use and maintenance of RF Power Amplifier.
Provide troubleshooting and repair services.
Provide replacement parts and components.
Answer customer inquiries and provide product information.
Provide technical training for customers.
Provide warranty service.
